Shape Tools


A variety of shapes can be drawn on a page to highlight, callout, detail and markup a drawing. These shapes can be pre-styled using Styles or can be individually styled using the shape properties or formatting toolbar that is displayed when a shape is selected. In addition, notes or comments can be attached to shapes to further detail the purpose of the callout.

Click the callouts below to see examples of each shape tool.

Shape Tools


1

Arrow Tool

1. Arrow Tool

2

Line Tool

2. Line Tool

Example: Thick line used as a highlight for graphic text.

3

Rectangle Tool

3. Rectangle Tool

Formatting Example: Green thick border with semi-transparent red fill.

4

Circle/Ellipse Tool

4. Circle/Ellipse Tool

5

Polyline Tool

5. Polyline Tool

Used to draw multi-segmented single object lines.

6

Polygon Tool

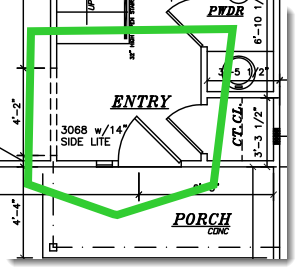

6. Polygon Tool

Used to draw any closed shape.


7

Cloud Tool

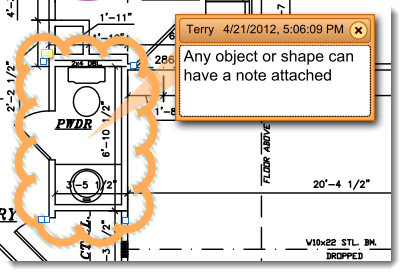

7. Cloud Tool

Use the Cloud Tool to call out revisions, additions or deletions.


8

File Attachment Tool

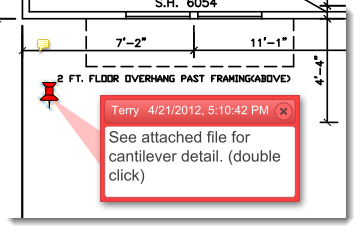

8. File Attachment Tool

Files can be attached to pages within a document. This is useful for including more information than can be comfortably displayed.

See the How Do I Attach a File to a Page section for detailed information.
