CAD Plot Style and Thickness


This section is used for selecting either to use the current plot settings for each layout or plot each layout with the settings selected in this section.

Most of these settings are only used when plotting from AutoCAD.


CAD Plot Style and Thickness

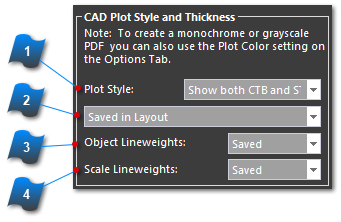

1

Plot Style

Select an existing plot style table (ctb or stb) file to use for all plots if the Use the existing settings checkbox is not selected.
2

Saved in Layout

"Saved in Layout" will use the existing ctb or stb that is defined in the page setup for each specific layout tab in the DWG file.
3

Object Lineweights

Either turn on, off, or use the saved settings for plotting the object lineweights in AutoCAD.
4

Scale Lineweights

Either turn on, off, or use the saved settings for scaling the lineweights in AutoCAD.
