General Options / PDF Document Properties

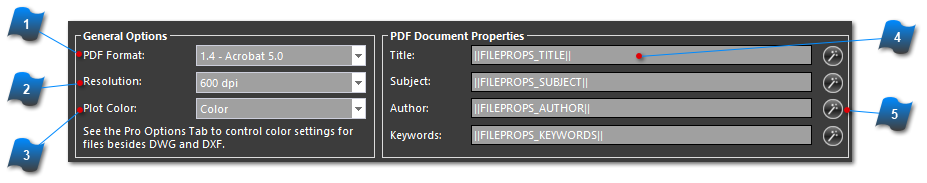

This section controls the version, resolution (DPI), and color for converted files, in addition to PDF document properties settings.


General Options / PDF Document Properties

1

PDF Format

Select the version of PDF that will be created for conversion output.
2

Resolution

Select the resolution of the PDF for conversion output.

A higher resolution will create a better quality output and a larger file size.
3

Plot Color

Use the AcroPlot Pro System Printer color control for color, grayscale, or monochrome feature instead of using the CAD programs monochrome stb or ctb plot styles.

Note: Selecting Monochrome or Grayscale will override your CTB and STB colors.
4

PDF Document Properties

Specify the values that will be stored in the summary fields of the PDF document.  The user can also use Fields in these properties that are automatically filled in when the user converts DWG or DXF files.

The 4 fields are:
  • Title
  • Subject
  • Author
  • Keywords
5

Wizard Buttons

Use the wizard buttons to help you pick the Fields that can automatically extract the information from the drawing properties for you.
