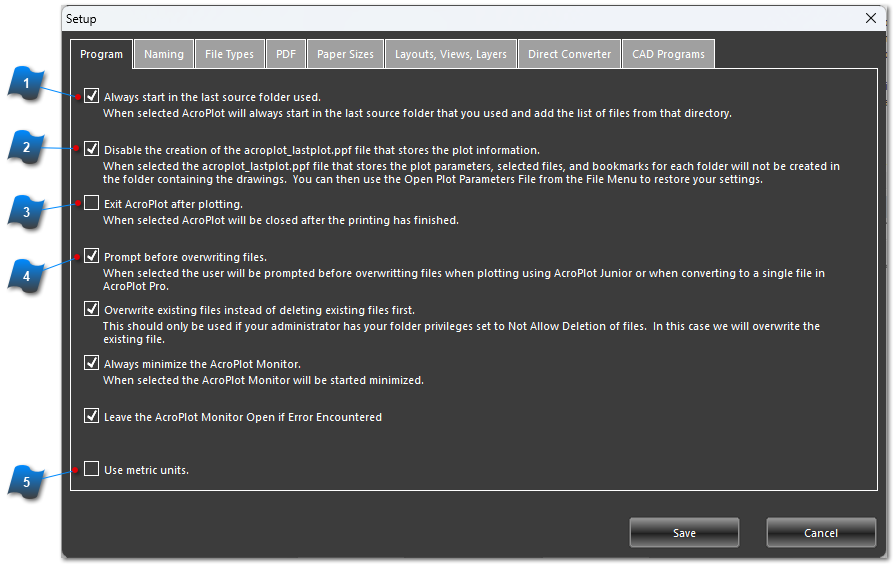

 Always start in the last source folder used.When this box is checked AcroPlot will always start in the last used source folder and add the list of files from that folder.
| |
 Disable the creation of the acrolot_lastplot.pdf file that stores the plot information.When this box is checked the acroplot_lastplot.pdf file that stores the plot parameters, selected files, and bookmarks for each folder will not be created in the folder containing the drawings. You can then use the Open Plot Parameters File from the File Menu to restore your settings.
| |
 Exit AcroPlot After PlottingWhen this box is checked AcroPlot will be closed after the printing has completed.
| |
 Prompt Before Overwriting Files.When this box is checked the user will be prompted before overwriting files.
| |
 Use Metric UnitsWhen this box is checked the units for the paper size, margins, and watermark location will be displayed in mm (millimeters).
| |
|
|
|
|
