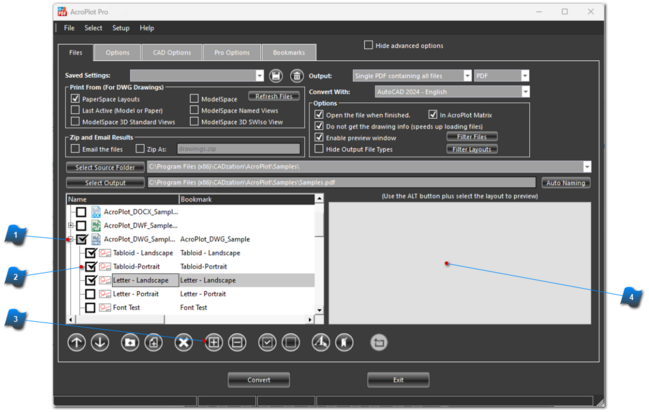

Step 6: Select the Files to Convert



Step 6: Select the Files to Convert


1

Select All Layouts in a Drawing

  • Click the + or - icons to expand or collapse parent drawings
  • Click the parent .DWG file checkbox to select all layouts in that drawing
2

Select Only the Files or Layouts You Want

  • Select only the files you want within a drawing by clicking on the various checkboxes.
  • A gray checkbox means only some items have been selected within that drawing file
3

Select Item(s) Button

Use this button to select the item(s) highlighted in the list.  If you do not have any files highlighted or you only have 1 file highlighted it will select all files in the list.
4

Preview File Area

  • If the "Enable preview window" box is checked then the you can <ALT> click on the item in the flies list to see a preview of most file formats.
