Edit Styles Menu


AcroPlot Matrix keeps a library of preset styles for drawing objects and fonts. This allows you to quickly add comments with pre-formatted properties and settings.


For Drawing Styles: color, line style, line thickness and the shape at the end of an arrow type line.


For Font Styles: font, color, size, bold, italicized, and justification.

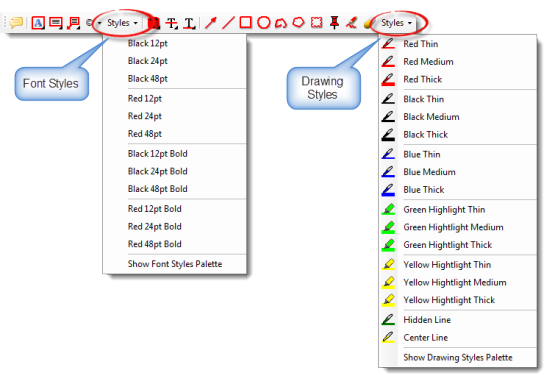

Click either the Font Style list or the Drawing Style list on the Markup toolbar, make a selection and the associated objects will all use the preset properties.


Properties can always be changed using the Properties toolbar before or after input.

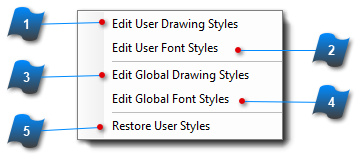

Edit Styles Menu



1

1.

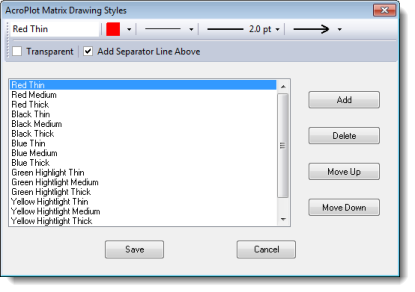

This is where Drawing Styles can be edited or created.

To create a new Drawing Style:

  • Click the Add button
  • Type in a descriptive name for the style
  • Set the line color
  • Choose a line type
  • Choose a line thickness
  • Select the shape that occurs at the end of the line
  • Place the style anywhere in the list by using the Move Up or Move Down buttons
  • Click the Save button


The new Drawing Style can now be selected from the Drawing Styles dropdown list.





2

2.

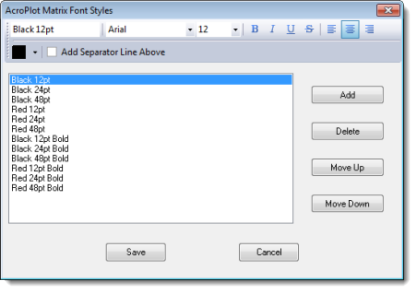

This is where Font Styles can be edited or created.

To create a new Font Style:

  • Click the Add button
  • Type in a descriptive name for the style
  • Select a font
  • Choose a font size
  • Set optional properties for bold, italicized, underlined, or cross-out
  • Select the default text justification
  • Place the new style anywhere in the list by using the Move Up or Move Down buttons
  • Click the Save button



The new Font Style can now be selected from the Font Styles dropdown list.




3
3.

You can make "Global Styles" available to users on a network or multiple users on the same machine.

Global Styles are available for all users on a machine and are always listed first.  You would need Admin rights to edit these styles.  Typically saved under Settings\Global folder in the Application directory.
4
4.

You can make "Global Styles" available to users on a network or multiple users on the same machine.

Global Styles are available for all users on a machine and are always listed first.  You would need Admin rights to edit these styles.  Typically saved under Settings\Global folder in the Application directory.
5
5.

Use this function to restore the User Styles to the initial install defaults.
