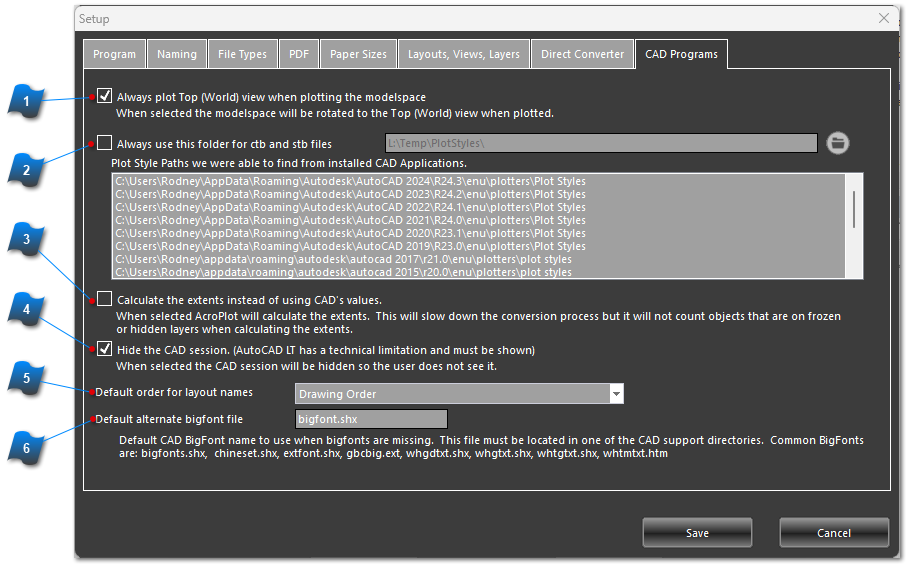

1

Always plot Top (World) view when plotting the modelspace

When selected the modelspace will be rotated to the Top (World) view when plotted.
2

Always use this folder for ctb and stb files

When this box is checked AcroPlot will use the folder listed here to find ctb and stb files.
Click the Browse button to open the Browse for Folder dialog box and locate the folder where these files reside.
3

Calculate the extents instead of using AutoCAD's values.

When selected, AcroPlot will calculate the extents. This will slow down the conversion process but it will not count objects that are on frozen or hidden layers when calculating the extents.
4

Hide the AutoCAD session.

When selected, the AutoCAD session will be hidden so the user does not see it.
5

Default order for layout names

Select either Drawing Order or Alphabetical Order for the default Drawing Order.
6

Default alternate bigfont file

Input the default AutoCAD BigFont name to use when bigfonts are missing. This file must be
located in one of the AutoCAD support directories.  Common BigFonts are:
bigfonts.shx,  chineset.shx, extfont.shx, gbcbig.ext, whgdtxt.shx, whgtxt.shx,
whtgtxt.shx, whtmtxt.htm
