Accurate conversion of True Type
fonts and advanced image optimization
permits highly compressed, fully
text searchable PDF's from AutoCAD
drawings. Our solid fill optimization
further reduces your PDF file size.
Make high quality compressed PDF's
from MS Office, Microstation, Inventor,
Solidworks, Pro/E, Unigraphics and
Automated Bookmark & File Naming
Using block attributes in layouts
and file properties in a DWG file,
allows for automatic creation of
bookmarks in the batch process as
well as control over the output
filename for the PDF created. String
together attributes from several
blocks to create logical file names
automatically. You are in control,
review and modify bookmarks prior
to batch file conversion.
Line Merge Control
Create PDF or DWF that view and
print exactly as they would from
AutoCAD. Full control of lines merge,
transparency, solid fill, and images
allow for creation of high quality,
optimized PDF files. Solid fills
make allow your files to view and
Batch Converter for Multiple
Create jobs from over 40 file types
including DWG, DOC, XLS, PDF, PLT,
and TIFF files to batch convert
and publish to PDF, DWF, TIFF files.
AcroPlot Suite incorporates most
powerful, intuitive batch converter
on the market with all the settings
needed to get the job done right
the first time. Save project sets
to reconvert with future revisions.
AutoCAD Add-In and Toolbar
AcroPlot Suite automatically installs
a toolbar in AutoCAD 2000-2019 (including
all AutoCAD vertical products) to
quickly create PDF's from any DWG
you are working in. Publish from
Modelspace, Paperspace, Layouts,
Named Views, or Custom Windows.
Multi-page or single page PDF files
are a snap. You can even launch
the AcroPlot Suite batch converter
from within your AutoCAD!

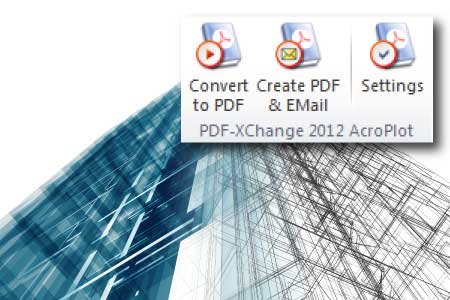

Microsoft Office Add-In and
AcroPlot Suite automatically installs
a toolbar in Microsoft Office so
you can create PDF's from Word,
Excel, PowerPoint with the push
of a button. Manage settings, quickly
create PDF's, and create and email
in a single action. This dynamic
tool saves time and is simple to
Includes a full version
of the PDF Printer Driver to
create PDF files from any application.
Converts all major office,
various CAD, and graphics formats.
Create single or multi-paged
PDF and DWF files.
Merge existing DWF files
into one multi-paged DWF 6 files.
Full support for AutoCAD
14 and newer. Also supports
all vertical applications including
ADT, MDT, LDDT, and Map.
Powerful built-in viewer
allows users to create and convert
without AutoCAD installed!
Convert legacy PLT, TIFF,
CALS, and GP4 files to either
DWF or PDF.
Automatic rotation of PLT
and graphics files ensures the
proper orientation every time.
Built-in engineering paper
sizes and complete customizable
paper sizes insures that output
can meet any standard or requirement.
Includes the AcroPlot Jr.
program also for conversion
from inside of AutoCAD.
AcroPlot Matrix Benefits

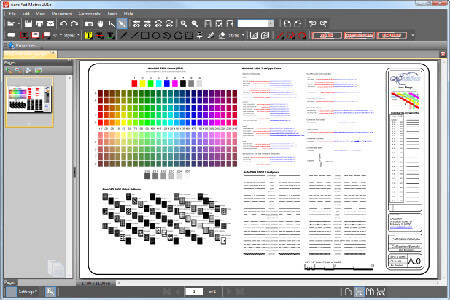

PROFESSIONAL PDF EDITOR
AcroPlot Matrix is quickly becoming
the preferred software application
for PDF communication across entire
organizations because it is so flexible
and easy to use, as well as, cost
effective to deploy. It works well
in all departments like administrative,
estimating, accounting, legal, parts,
LITTLE OR NO TRAINING NEEDED
With a streamlined interface that
makes it easy to use, yet very powerful,
AcroPlot Matrix doesn't get in the
way of getting work done. Users
can quickly open and add comments
or stamps to files, insert, reorder,
rotate, or delete pages, and even
merge various file types into a
TRACK COMMENTS FOR PROJECTS
Who said that and did it get done?
Commenting and marking-up digital
files with tools that make it easy
to convey revisions helps everyone
stay on task. AcroPlot Matrix unifies
teams and offers additional collaboration
tools for project principals.
DIGITAL SIGNATURES & SECURITY
Signed, Sealed, Delivered -- Electronically!
You don’t have to print out a sheet
of paper just to put your signature
or professional stamp on it. AcroPlot
Matrix provides everything necessary
to apply 256-bit file security and
2048-bit RSA signature certificates.
AcroPlot Matrix eliminates the “Scale-to-Fit”
headache when plotting to paper.
Print to paper at any scale, on
any printer/plotter, and be confident
that you can check measurements
on “paper” as needed. When the batteries
are dead in your mobile device,
paper is good and works as long
as there’s light.

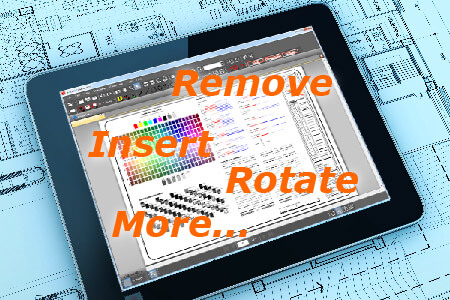

DRAG-N-DROP SIMPLIFIED EDITING
AcroPlot Matrix makes editing files
as simple as using a 3-ring binder
without pinching your fingers! Tear
pages out, add pages in, rotate,
re-order, organize, and more. User’s
quickly understand the simple, yet
powerful interface of AcroPlot Matrix
which makes using it a pure joy.
“Did you make those changes to that
document?”...”Yep, piece of cake
AcroPlot AutoCAD Add-In Benefits
AcroPlot Suite includes an integrated menu, toolbar for the AcroPlot Pro DWG to PDF batch converter to run directly within AutoCAD. Compatible with AutoCAD 2019 and all versions back to 2000.
Quick PDF In AutoCAD
Convert the AutoCAD DWG you are working on to PDF with a single click via the AcroPlot menu that is installed into your AutoCAD. Additional quick selections for all layouts, views, current layout, and modelspace.
STOP Getting the Wrong Output
Eliminate orientation and rotation issues with the AcroPlot Suite AutoCAD Add-in. Architects and engineers get the results they expect when creating PDF’s. Using AcroPlot inside AutoCAD guarantees fast accurate output every time. Landscape page setting will get you a landscape PDF without the need for post conversion editing.
Additional Plotting Controls
Save time with page setup override switches that don’t modify your DWG file. Change sheet size, scale, and assigned plot styles in seconds when plotting. An advanced array of plot settings makes the AcroPlot AutoCAD add-in a valuable tool for any organization.
AcroPlot Microsoft Office Add-In Benefits
AcroPlot Suite includes an integrated toolbar for Microsoft Office to quickly create PDF files from inside Word, Excel, PowerPoint, Publisher, and Visio.
Quick PDF For MS Office Apps
Configure your most common settings for creating PDF files and then just click the “Create PDF” button. Includes preferences for page setup, compression, digital signature, stamps, overlays, and PDF security. Button to click to create a PDF and email it as an attachment, too!
Bookmarks & Links Done Right
No need to manually create bookmarks in PDF’s. Automatically create bookmarks in PDF’s using heading, bullets, and other document format styles. Save hours of time by auto-detecting the table of contents (TOC) in your document which will hyperlink to their respective page in the PDF.
Application Based Options
Since Word, Excel, PowerPoint, etc., are unique for jobs that they help you accomplish, the AcroPlot Suite MS Office Add-in offers application specific options for creating PDF’s. When configuring your settings in each application you will find additional PDF conversion settings specifically tailored achieve the maximum benefit from each program.
AcroPlot Printer Benefits
PROFESSIONAL GRADE VIRTUAL PRINTER
The AcroPlot Suite installs a printer in the “Device & Printers” folder on your PC which allows you to create high quality PDF’s from any program. Right-click on it and choose “Printing Preferences” to review all the options and settings that meet the needs of large corporations, as well as, individual users that demand exacting standards.

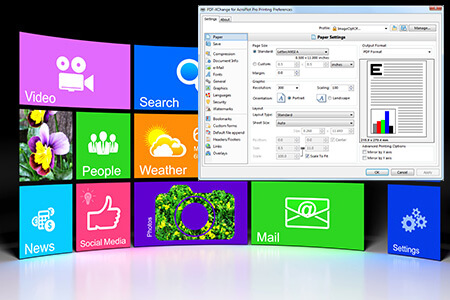

PRINT FROM ANY WINDOWS PROGRAM
High quality digital output from any Windows program! Not all programs offer consistent output or file compression when creating virtual files like PDF. The AcroPlot Suite printer is designed to let you create digital files that view and print correctly.
PRINT, ATTACH, & EMAIL
Save time by configuring your settings to automatically attach the files you create to a new email so all you need to do is enter an email address and select “Send.” We make it easy for you to get things done faster.
ADD PAGES TO EXISTING PDF WHEN PRINTING
Build documents as you go. With the AcroPlot Suite virtual printer you can keep printing to the same output file and automatically append the pages to the PDF. Printing from several different programs to a single PDF file will simplify creating your final product.
AUTOMATED BOOKMARK CREATION
No need to spend hours manually creating bookmarks in PDF’s. Automatically create bookmarks in PDF’s using heading, bullets, and other document format styles. Plus, the AcroPlot Suite includes AcroPlot Matrix which can quickly update any bookmarks in a PDF.
DIGITALLY SIGN & WATERMARK IN ONE CLICK
Signed, Sealed, Delivered -- Electronically! You don’t have to print out a sheet of paper just to put your signature or professional stamp on it. Print, stamp, sign, and secure in one step. The AcroPlot Suite virtual printer provides everything necessary to apply 256-bit file security and 2048-bit RSA signature certificates.
AcroPlot Suite supports an extensive list of file formats
for batch conversion to PDF, DWF, and image formats.
