CAD Misc. Settings


Additional plot controls for converting DWG and DXF files to PDF and DWF.

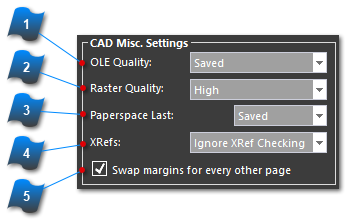

CAD Misc. Settings

<
1

OLE Quality

select the OLE Quality that may affect the conversion of object such as Word documents that were inserted into the drawing file.
2

Raster Quality

Select the level of plot quality for raster images contained in the file.
3

Paperspace Last

Either turn on, off, or use the saved settings for plotting the paperspace last used in the file.
4

Do Not Plot if Unresolved XRefs are Found

When selected, if a drawing has an unresolved XRef, then it will not be converted and an error will be logged.  Otherwise just a warning will be displayed.
5

Swap Margins

When selected this will switch the margin justification in order to bind the drawings into a book.

Note: This only works with DWG files.
