CAD True Type Text Settings


Allows True Type Text in the AutoCAD file to be converted as searchable text in the PDF file.

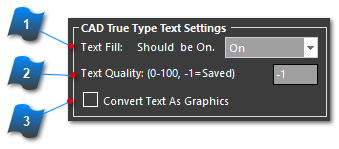

CAD True Type Text Settings


1

Text Fill

Either turn on, off, or use the saved settings for the texfill system variable.

Note: In order to properly convert the True-Type Text the Text Fill should be turned on.

2

Text Quality

Set a value between 1 and 100 to control the quality of the text.  The default setting in AutoCAD is 50.

To use the saved value set this equal to -1.
3

Convert Text as Graphics

When selected, all text will be converted as lines and arcs. This will render this text unsearchable in the PDF or DWF file.
