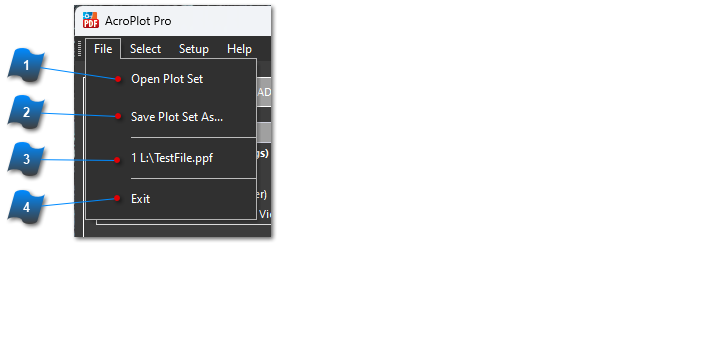

![1](drex_bullet_1.png) Open Plot Set
Launches a dialog box to open and install a previously saved AcroPlot "plot parameter file" (*.ppf). This file stores project settings including the file list, output settings and layout selection. .ppf files can be shared and opened by other AcroPlot users.
| |
![2](drex_bullet_2.png) Save Plot Set As ...
Saves all of the current settings including the files and layout selections to an AcroPlot plot parameter file (*.ppf) This file stores project settings including the file list, output settings and layout selection. .ppf files can be shared and opened by other AcroPlot users.
| |
![3](drex_bullet_3.png) Recent Plot List Files
This section lists the 10 most recently created plot parameters files.
| |
![4](drex_bullet_4.png) Exit
Exits and closes the AcroPlot Pro program. The Exit button at the bottom of the main window also exits and closes the program.
| |
|
|
|
|
